Many users wonder: What are the common types of rental LED display cabinets on the market? And what are their respective advantages? Below we analyze the 4 mainstream types in detail.
Introduction to Rental LED Display Cabinets

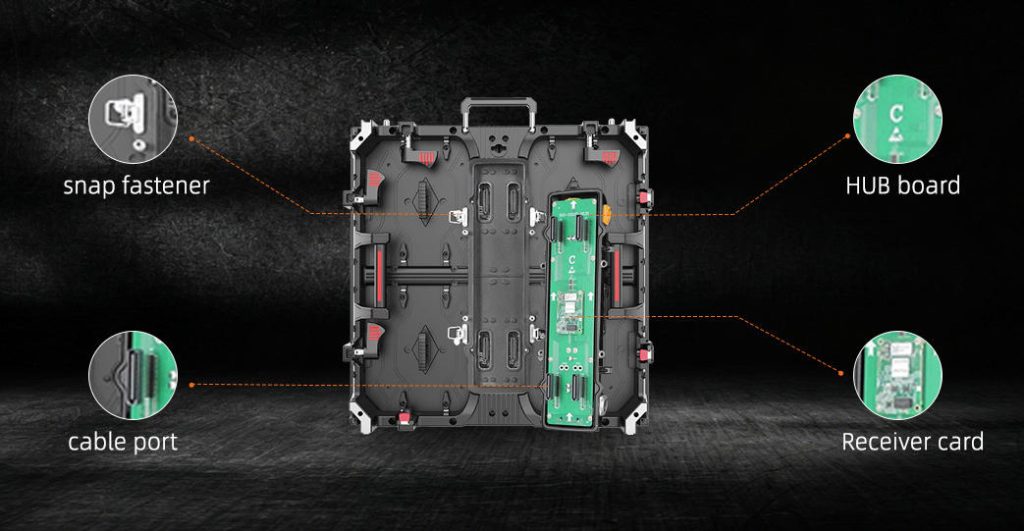

1. Die-cast Aluminum LED Display Cabinet
Die-cast aluminum cabinet is currently the most mainstream and widely used type for rental LED displays. It features light weight, reasonable structural design and high processing precision, realizing almost seamless splicing.
EAGER die-cast aluminum LED cabinets are classified into indoor type, outdoor type and professional rental type to meet different project demands.
Key Features of Die-cast Aluminum Rental LED Cabinets
- Ultra Lightweight: Only 9kg per cabinet, portable for single-person carrying and fast on-site installation.
- Ultra Thin & Deformation Resistant: Made of premium die-cast aluminum, it owns high strength, good toughness and high precision, not easy to deform and saves much transportation effort.
- High Splicing Precision: Adopts precision mechanical processing with dimensional tolerance controlled within 0.1mm.
- Wide Compatibility: Optimized structure supports both hanging and stacking installation, suitable for indoor and outdoor event use.
- Fast Lock & Assembly: Equipped with quick locking structure on four sides, realizing fast splicing with high installation accuracy.
- Stable & Reliable: High strength and hardness with excellent heat dissipation performance.
- Cost Saving: Light weight reduces installation labor cost; low power consumption cuts operating electricity cost and manual maintenance cost.
2. Nano Polymer Material LED Cabinet
Nano polymer LED cabinet is a relatively rare type in the industry. Made of nano polymer material, it comes with shockproof and drop-proof performance. It is lighter in weight, more cost-effective than die-cast aluminum cabinet, easy to assemble and carry, and greatly reduces transportation expenses.
Main Advantages of Nano Polymer LED Cabinets
- Light Weight: Only about 6kg per cabinet.
- Slim Body: Thickness ranges from 20mm to 70mm.
- Efficient Operation: Time-saving installation and maintenance; labor-saving handling and transportation.
- Creative Splicing Support: Available for unlimited long-distance hoisting up to 20 meters. It supports 15° inner and outer arc splicing, and allows arbitrary cabinet combination to create special creative LED screen shapes.
- Economical Cost: The price is 20% lower than die-cast aluminum cabinet, with lower logistics and transportation cost.
3. Carbon Fiber LED Cabinet
Carbon fiber LED cabinet adopts ultra-thin and lightweight design with high structural strength. Its tensile strength reaches 1500kg, and the weight is only 9.4kg per square meter.
With full modular design, daily maintenance becomes simpler. It supports 45° edge trimming and 90° right-angle splicing. The optional non-transparent back panel is perfect for large-area installation in stadiums, outdoor billboards and other commercial projects.
4. Magnesium Alloy Rental LED Display Cabinet
Magnesium alloy LED cabinet was popular in the early market but is less common now. Magnesium alloy is made based on magnesium mixed with other alloy elements.
It has low density, high strength, excellent heat dissipation and great shock resistance. It bears larger impact load than aluminum alloy, and performs well in corrosion resistance to organic matter and alkali.
As a rental LED cabinet solution, magnesium alloy features high cost performance, simple installation and superior heat dissipation, maintaining strong market competitiveness.
Conclusion: Standard Size Selection for LED Rental Cabinets
Above is the detailed introduction of 4 common LED rental cabinet types.
Normally, the cabinet area is designed between 0.2 square meters and 1 square meter.Oversized cabinets will cause troubles in installation, transportation and moving; while too small cabinets will increase production cost for manufacturers and procurement cost for customers.
