Complete Guide to LED Screens: From Beginner to Practical Application

Part 1: Basic Introduction – Core Concepts & Selection

Before you start, you must first understand a few core concepts.

1. Core Technical Parameters

Pixel: The smallest imaging unit of an LED display, usually composed of three lamp beads: R (red), G (green), and B (blue).

Pixel Pitch: The distance between the centers of two adjacent pixels, measured in millimeters (mm), such as P2.5, P3, P4, etc. This is the most important parameter.

Selection Principle: The closer the viewing distance, the smaller the pixel pitch, the higher the resolution, and the higher the price.

There is a general formula: Optimal viewing distance (meters) ≈ Pixel pitch (mm) / 0.3 ~ 0.8. For example, the optimal viewing distance for a P3 screen is about 4-10 meters.

Resolution: The number of horizontal and vertical pixels of the display (e.g., 1920×1080). Resolution determines the clarity of the image.

Brightness: Measured in candelas per square meter (cd/m² or nits). Indoor screens generally range from 800-1500 nits, while outdoor screens need to reach more than 5000 nits to overcome sunlight interference.

Refresh Rate: The number of times the screen refreshes the image per second, measured in Hertz (Hz). The higher the refresh rate (e.g., ≥1920Hz), the less likely water ripples will appear when shooting, and the smoother the image.

Gray Scale: Refers to the brightness levels between the darkest and lightest parts of an image. The higher the level (e.g., 16bit), the more natural the color transition and the more delicate the display effect.

2. Selection of Different Types of LED Screens

By Usage Environment:

• Indoor Screens: Low brightness, no waterproof requirement, lightweight. Common types include rental LED screens, fixed installation screens, and small-pitch LEDs (below P2.5).

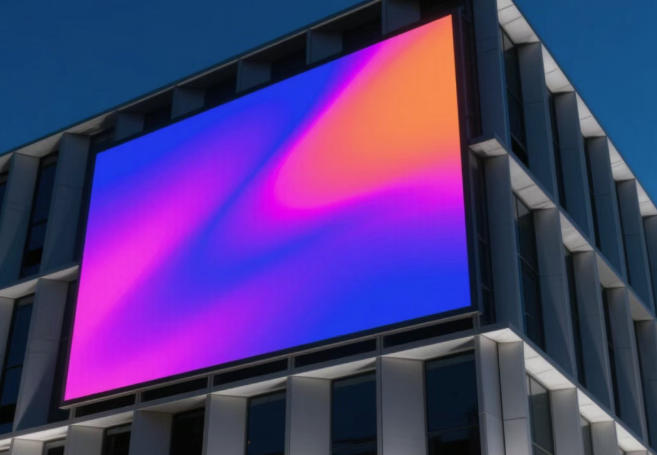

• Outdoor Screens: High brightness, high waterproof rating (IP65 or above), UV resistance, wind resistance, and shock resistance.

By Product Form:

• Fixed Installation Screens: Permanently installed with a sturdy structure.

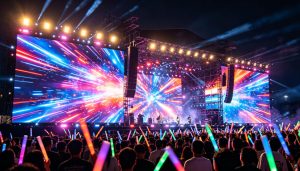

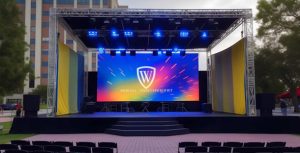

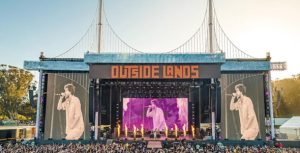

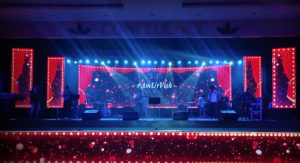

• Rental LED Screens: Lightweight, quick to assemble and disassemble, stackable and splittable, suitable for stages and exhibitions.
• Transparent Screens: High transparency, does not affect lighting, commonly used in mall windows and building facades.

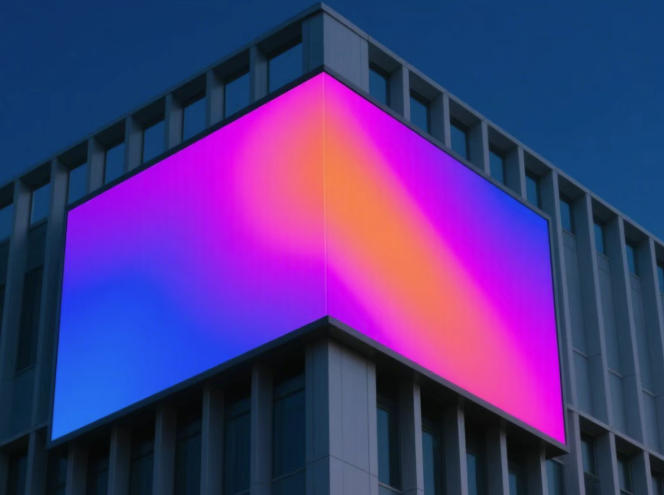

• Special Shape Screens: Such as curved screens, spherical screens, wave screens, etc., to create unique visual effects.

Part 2: Design & Planning – Plan First

1. Preliminary Survey (Crucial!)

• Size Measurement: Accurately measure the width and height of the installation location.
• Environment Evaluation: Indoor or outdoor? Is there direct sunlight? Are there strong electromagnetic interference sources nearby?
• Load-Bearing Evaluation: Does the load-bearing capacity of the installation wall or structure meet the requirements? (Outdoor screens are very heavy)
• Viewing Angle & Distance: Determine the position and distance of the main audience to infer the required pixel pitch and size.
• Power & Signal: Are there enough power access points nearby? Is the network cable signal transmission distance sufficient (fiber optic cable is required for distances over 100 meters)?

2. Scheme Design

Determine Screen Size and Resolution: Calculate the actual length, width, height, and physical resolution of the screen based on the pixel pitch and installation space.

Screen length = Number of horizontal pixels × Pixel pitch

Screen height = Number of vertical pixels × Pixel pitch

System Configuration:

• Video Processor: Choose a device that supports the required input signal sources (HDMI, DVI, SDI, etc.) and output resolution.
• Sending Cards & Receiving Cards: The number of sending cards is determined by the resolution, and the number of receiving cards is determined by the number of cabinets.
• Power Distribution Cabinet: Calculate the total power consumption and configure a suitable air switch and time sequence power supply (to avoid grid impact when powering on simultaneously).
• Steel Structure Design: Professional engineers design based on screen weight, wind load (outdoor), seismic load, etc., to ensure safety.
• Content Design: Consider the aspect ratio of the screen (is it 16:9?), and plan videos, images, text, etc., in advance to avoid stretching and distortion during display.

Part 3: Construction & Installation – Practical Skills

Installation Process: Steel Structure Production → Power Wiring → Signal Wiring → Screen Installation → System Debugging

1. Steel Structure (Dragon Frame)

Skills:

• The steel structure must be horizontal, vertical, and firm. Use a level and plumb line to repeatedly calibrate the base frame before installation.
• Outdoor structures need drainage design to prevent water accumulation. All welding and anti-rust treatments must meet standards.

2. Wiring (Power & Signal)

Power Cables (AC220V):

Skills:

• Strictly follow the “three-phase balance” principle and evenly distribute the cabinet power to the three-phase electricity.
• The wire diameter (thickness) should be selected based on the total current calculation; it is better to be thicker than thinner to prevent overheating. Power (W) / Voltage (V) = Current (A)
• Strong electricity (power) and weak electricity (signal lines) must be routed separately, with a spacing of at least 30cm. When routing in parallel, they should cross at 90° to prevent electromagnetic interference.

Signal Cables (Network Cables):

Skills:

• Must use Cat5e, Cat6, or higher standard pure copper network cables.
• The distance from the sending card to the first cabinet, and the series connection distance between cabinets, should preferably not exceed 100 meters. For distances over 100 meters, fiber optic transmission must be used (with fiber optic transceivers).
• Label the network cables clearly, indicating the source and destination for future maintenance.

3. Screen Installation (Hanging Cabinets/Assembling Modules)

Skills:

• The installation sequence is generally from bottom to top and from the middle to the surrounding, which is convenient for adjusting flatness.
• Use cabinet flatness adjusters (if supported) or gaskets for fine adjustment to ensure the entire screen surface is on the same plane. This is a key step affecting the viewing effect.
• All connecting cables (between modules and receiving cards) must be fully inserted; loose connections will cause a column of lights to be off or flicker.
• Tighten the screws, especially for outdoor screens, and add anti-falling gaskets.

4. System Debugging

Power-On Test:

First, disconnect the power of all cabinets, then power on the sending card and processor. Then power on step by step: turn on the main air switch → turn on the shunt air switch of the power distribution cabinet → power on the cabinets. Never switch on all power at once!

Connect Debugging Software & Set Screen Parameters:

Correctly set the width and height pixels of the display screen, as well as the scanning method (usually provided by the manufacturer).

Calibration:

Perform brightness and chromaticity calibration (white balance) to ensure uniform color across the entire screen. For high-end projects, special calibration equipment (such as cameras) is used for point-by-point calibration.

Function Test:

Test whether the access and switching of various signal sources are normal, and play videos to check for blind spots, bright lines, mosaics, and other issues.

The key to the success of an LED large screen project lies in “70% installation and 30% debugging”.

• Early Stage: Meticulous survey, scientific selection, and careful design.
• Mid Stage: Standardized construction, focusing on details (levelness, wiring, waterproofing, heat dissipation).
• Late Stage: Strict debugging and acceptance.

How to Choose the Right LED Screen Resolution

Core Concepts: Physical Resolution vs. Signal Resolution

First, you must understand two concepts:

1. Physical Resolution (Native Resolution): This is the inherent number of pixels of the LED screen itself. It is determined by the screen size and pixel pitch (Pitch).
2. Signal Resolution (Input Resolution): This is the signal resolution output by the computer or video processor to the LED screen (e.g., 1920×1080, 3840×2160, etc.). The LED screen will receive this signal and adapt it to its own physical resolution for display.

Your goal is to match the most suitable signal resolution for a specific physical resolution to achieve the best display effect and cost performance.

Four Key Steps to Choose the Right Resolution

Step 1: Determine Core Constraints – Optimal Viewing Distance & Budget

This is the starting point of all decisions. Ask yourself the first question: How far will the audience mainly watch from?

Principle: Optimal viewing distance ≈ Pixel pitch (mm) × 2 ~ 3

Example: If the audience watches from as close as 5 meters, the suitable pixel pitch is around P2.5 (5 / 2 = 2.5).

Inference: Viewing distance determines the pixel pitch (Pitch), and the pixel pitch and screen size together determine the physical resolution range.

• High Resolution Requirements (e.g., conference rooms, front-row viewing at product launches): Choose small pitch (e.g., P1.5-P2.5), which is more expensive.
• Medium or Long-Distance Viewing (e.g., mall atriums, outdoor advertising): Choose larger pitch (e.g., P3-P10), which is cheaper.

Conclusion 1: Initially determine the [pixel pitch] based on [viewing distance] and [budget], thereby locking the [physical resolution] range of the screen.

Step 2: Match Industry Standard Signal Resolution (Pursue the Best 1:1 Display)

After determining the physical resolution, the ideal state is to make the signal resolution as close as possible to or equal to the physical resolution to achieve “1:1 display”, which has the highest clarity and no scaling distortion.

Common standard signal resolutions (also known as “standard formats”) are:

• 720p (HD): 1280 × 720
• 1080p (Full HD): 1920 × 1080 – The most commonly used and cost-effective benchmark
• 2K: 2048 × 1080 (or often referred to as 2560 × 1440)
• 4K (UHD): 3840 × 2160 – Increasingly becoming the standard for high-end projects
• 8K: 7680 × 4320

How to Match?

1. Calculate your screen’s physical resolution (see the formula above).
2. Choose the standard signal resolution that is closest to and not exceeding the physical resolution.
3. Let the video processor slightly scale the signal to full screen.

Practical Example:

Your screen’s physical resolution is 2000 × 1000.

The standard resolution smaller than it is 1920 × 1080 (1080p), and the larger one is 3840 × 2160 (4K).

The best choice is 1920 × 1080. Because:

If you force a 4K signal input, the processor will compress 4096 pixels into 2000 physical pixels for display, resulting in loss of details, blurred text, and possibly worse effects.

Inputting a 1080p signal only requires slight magnification by the processor, with minimal image quality loss, low system load, and better cost performance.

Conclusion 2: Prioritize choosing the closest standard signal source (usually 1080p or 4K) that is less than the physical resolution to achieve the best display effect.

Step 3: Consider Content Source & Cost Trade-Off

Content source determines the signal source: What content will you play?

• If you mainly play Full HD (1080p) promotional videos or PPTs, designing the screen based on 1080p is the most economical.
• If you need to play 4K movies or ultra-high-detail engineering drawings, you should design the screen based on 4K.

Cost Trade-Off:

• Pursuing 4K Effect: This means the physical resolution needs to reach about 3840×2160. This can be achieved by reducing the pixel pitch or increasing the screen area, both of which will significantly increase costs.
• 1080p Effect is Sufficient: This is currently the most cost-effective solution, meeting the needs of most application scenarios.

Conclusion 3: Don’t pay for unused resolution. Find a balance between effect and cost based on your main playback content.

Step 4: Utilize the Capabilities of the Video Processor

Modern high-performance video processors can solve some resolution mismatch problems.

• Function: They can high-quality enlarge (scale) a low input signal (e.g., 1080p) and still maintain good clarity when displayed in full screen.
• Limitation: The larger the magnification, the higher the risk of image quality loss. Enlarging a 1080p signal to a physical resolution far exceeding 4K will result in blurred effects.

Conclusion 4: A good video processor is key to making up for insufficient resolution matching, but it is not a panacea. The core still lies in the reasonable matching of physical resolution and signal resolution.

Practical Case Study

Case: Install an 8-meter wide and 4.5-meter high LED screen in the company lobby, with audience distance of 3-15 meters.

1. Determine Pixel Pitch: The optimal viewing distance is 3 meters, initially select P2.5 (3 / 1.2 ≈ 2.5).
2. Calculate Physical Resolution:
   1. Width: 8 / 0.0025 = 3200 pixels
   2. Height: 4.5 / 0.0025 = 1800 pixels
   3. Physical Resolution: 3200 × 1800
3. Match Standard Signal:        3200×1800 is very close to 4K’s 3840×2160 but slightly smaller.
   1. Standard resolutions smaller than it: 2560×1440 (2K) or 1920×1080 (1080p)
   2. Standard resolution larger than it: 3840×2160 (4K)
4. Make a Choice:
   1. Option A (High-End): Use 4K as the standard. Input 4K signal, and the processor slightly reduces it to the screen’s physical resolution (3200×1800) for display. The effect is excellent, but the processor and content costs are high.
   2. Option B (High Cost-Effective): Use 1080p as the standard. Input 1080p signal, and the processor enlarges it to full screen. The effect is good enough, and the system cost (number of sending cards, etc.) and content production cost are the lowest.
5. Final Decision: Most of the lobby content is 1080p videos and images, so there is no need for extreme 4K effect. Choose Option B for the highest cost performance.

Golden Rules

1. First determine the viewing distance, then select the pixel pitch (Pitch).
2. Calculate the physical resolution based on the pitch and size.
3. Choose the closest standard signal resolution (1080p/4K) that is not exceeding the physical resolution.
4. Content determines the lower limit, and budget determines the upper limit. Find the best balance between clarity and cost.

Common Problems During Installation (Avoid Pitfalls Guide)

We divide the problems into four categories: Structural & Mechanical Problems, Electrical & Power Problems, Signal & Image Problems, Software & Debugging Problems.

I. Structural & Mechanical Problems

1. Poor Screen Flatness, Showing a “Wave-Like” Shape

Phenomenon: The entire screen looks uneven with a concave-convex feeling, especially obvious when displaying a solid color background.

Causes:      The steel structure frame itself is not adjusted to be horizontal and vertical.The screws were not tightened one by one during cabinet installation, resulting in uneven force.The adjustment mechanism between cabinets (such as male and female buckles) was not finely adjusted.

Solutions:     Use a level and laser line projector to ensure the main frame is completely horizontal and vertical before installation.Adopt the installation sequence from bottom to top and from the middle to the surrounding, initially fix the screws one by one, and finally tighten them in a diagonal order with a torque wrench.Use a cabinet flatness adjuster for fine adjustment to ensure all cabinets are on the same plane.

2. Inconsistent Gaps Between Cabinets

Phenomenon: The black gaps between cabinets are of different widths, affecting the overall appearance.

Cause: Insufficient installation accuracy, inaccurate cabinet positioning, or extrusion.

Solution: Use uniform gap gaskets to assist in positioning between cabinets, and take them out after installation to ensure all gaps are uniform.

3. Failed Waterproof Treatment of Outdoor Screens

Phenomenon: Water enters the screen body during the first rain or water spray test after installation, causing short circuits and damage to lamp beads and power supplies.

Causes:      The waterproof rubber rings (silicone rings) between cabinets are aging, damaged, or not pressed tightly.The joint between the screen body and the rear building wall is not sealed with weather-resistant sealant, or the sealant is discontinuous with bubbles.Defective waterproof design, no canopy on the top, or poor drainage.

Solutions:     Check that all waterproof rubber rings are intact before installation, and evenly tighten the cabinet screws to ensure they are pressed tightly.The connection between the screen perimeter and the building must be continuously and fully sealed with high-quality neutral weather-resistant sealant.Mandatory: After installation, conduct a spray test. Use a fire water gun to simulate heavy rain washing from all angles for 15 minutes, then turn on the screen to check for water stains inside.

II. Electrical & Power Problems

1. Power-On Tripping or Power Cable Overheating

Phenomenon: The air switch trips instantly when closed, or the power cable becomes hot after working for a period of time.

Causes:      Short Circuit: The line is broken and grounded, or the internal equipment is short-circuited.Severe Overload: The power cable diameter (thickness) is too small to bear the working current.Unbalanced Three-Phase Power Supply: The large power consumption of the large screen causes all power to be connected to the same phase, leading to three-phase imbalance and air switch tripping.

Solutions:     Use a multimeter to measure the line resistance before power-on to eliminate short circuits.Strictly calculate the current based on the total power and select a sufficiently thick national standard copper core wire. Current (A) = Total Power (W) / Voltage (V) / Power Factor (about 0.9)Evenly distribute the screen’s power load to the three-phase electricity to ensure three-phase balance.

2. Partial Cabinets Not Lighting Up or Flickering

Phenomenon: Most of the entire screen is normal, but a certain column or block of cabinets is not lit, dimly lit, or flickering.

Causes:      The air switch of the cabinet is damaged or tripped.The power cable connector supplying the cabinet is loose or the wire nose is not pressed tightly.The DC power module inside the cabinet is damaged.

Solutions: Check and tighten all power connections.Use a multimeter to measure the input voltage of the problematic cabinet and troubleshoot step by step (air switch → power cable → power module).

III. Signal & Image Problems

1. “Caterpillar” Effect (Entire Row Always On)

Phenomenon: An entire row or column of LED lights on the screen is always on (usually red or green), like a caterpillar.

Cause: This is the most typical signal transmission problem.      Cable Problem: The flat cable is not fully inserted, loose, or pierced and short-circuited by pins.Module IC or PCB Failure: The driver chip on the module is damaged.

Solutions:      First Choice: Re-plug the flat cable and check if the gold finger of the flat cable is intact.Try replacing it with a new flat cable.If the problem moves to another cabinet with the flat cable, it is a flat cable problem; if the problem is fixed in the same position, it is a module problem, and the module needs to be replaced.

2. Local Black Screen, Garbled Screen, Mosaic

Phenomenon: A certain area of the screen does not display, displays garbled characters, or color blocks.

Causes:      Network Cable Problem: The network cable is too long (over 100 meters without fiber optic), poor quality (not pure copper), or unqualified crystal head production.Receiving Card Problem: The receiving card in this area is faulty, underpowered, or the communication with the sending card is interrupted.HUB Board Problem: The expansion board connecting the receiving card and the module is faulty.

Solutions:      Check the network cable connection and replace it with a high-quality Cat6 network cable.Fiber optic transmission must be used for distances over 100 meters.Check the receiving card status in the software, restart or reset the receiving card.

3. Entire Screen Flickering

Causes:      Power Grounding Problem: Poor grounding or no grounding.Low Refresh Rate Setting: Mismatched with the camera shutter speed.

Solutions: Ensure the entire system has good and reliable grounding.Increase the screen’s refresh rate in the software (e.g., to above 3840Hz).

IV. Software & Debugging Problems

1. Debugging Software Cannot Detect Devices

Phenomenon: After connecting the computer to the sending card, the software cannot find the screen device.

Causes:      Incorrect IP Address Setting: The sending card and the computer are not in the same network segment.Incorrect Network Card Selection: The computer has multiple network connections (e.g., Wifi, wired network card), and the software selects the wrong exit network card.Sending Card Failure or Power Supply Problem.

Solutions: Set the computer’s IP address to a static IP, usually 192.168.1.xxx (according to the sending card manufacturer’s requirements).Select the correct local network card in the software.Check if the sending card indicator is normal.

2. Uneven Display Color (Color Difference)

Phenomenon: When the same color is displayed in different areas of the screen, there is a color difference (e.g., red on the left, blue on the right).

Cause: The LED lamp beads themselves have batch color differences, or no calibration has been performed.

Solutions:      White Balance Adjustment: Perform basic brightness, contrast, and color temperature adjustments on the entire screen in the software.Point-by-Point Calibration: Use professional calibration cameras to collect and calibrate the brightness and color of each pixel of the screen. This is the ultimate way to solve color difference problems, especially for high-end projects.

Core Pitfall Avoidance Points

1. Preliminary Survey is the Foundation: Size, load-bearing, power supply, environment—none can be sloppy.
2. Structural Flatness is the Face: Invest time in leveling the frame and cabinets for twice the result with half the effort.
3. Power Safety is the Lifeline: Strictly calculate wire diameter, ensure three-phase balance, and reliable grounding.
4. Signal Stability is the Blood Vessel: Use good wires (pure copper network cables/fiber optics), make good crystal heads, and route wires standardized (separate strong and weak electricity).
5. Waterproof Treatment is Key: Rubber rings, sealant, testing—step by step.
6. System Debugging is the Soul: Patiently complete IP settings, connections, white balance, and calibration.
