SH-C Series

Flexible Rental LED Screens

Application: Entertainment Venue, Exhibition Hall, Column, Auto show

Flexible custom LED module
Equipped with quick lock

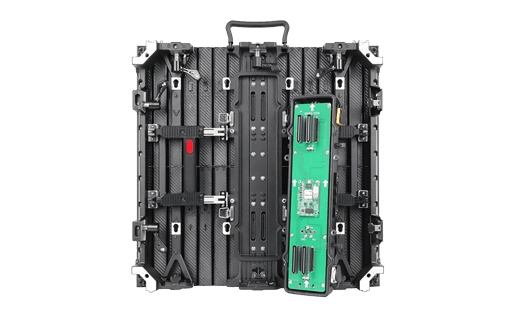

Removable back cover
Humanized box design
Inner and outer arcs
140° wide viewing angle
Factory Customized Solution

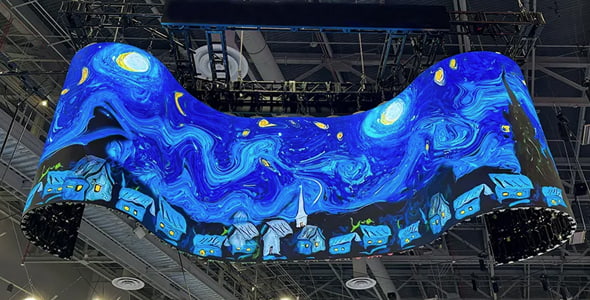

Creative flexible LED Screen

Application: Entertainment Venue, Exhibition Hall, Shopping Mall, Column, Auto show, Advertising. Its ultra‑flexible design enables creative shapes—cylinders, 90° arcs, and large‑angle concave/convex screens—perfect for dynamic stage builds.

Pixel Pitch: 2.6mm / 2.9mm / 3.9mm Panel Dimension: 500(W)x500(H)x74(D)mm

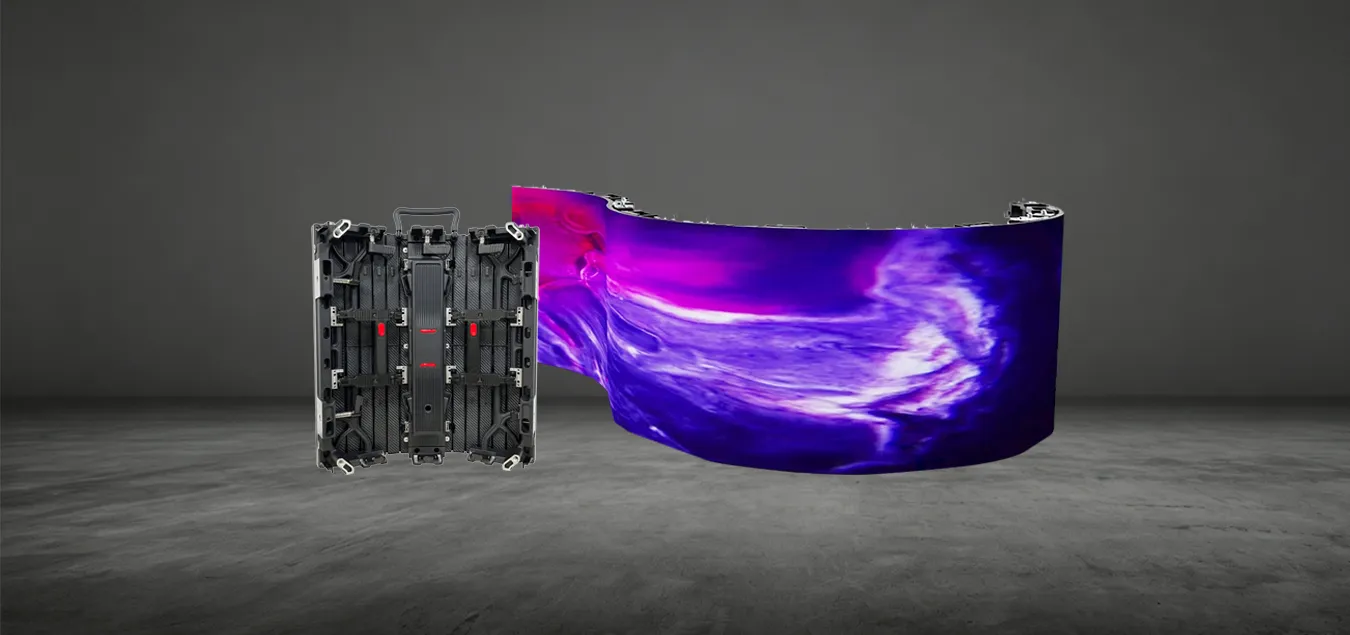

SH-C Flexible Rental LED Display

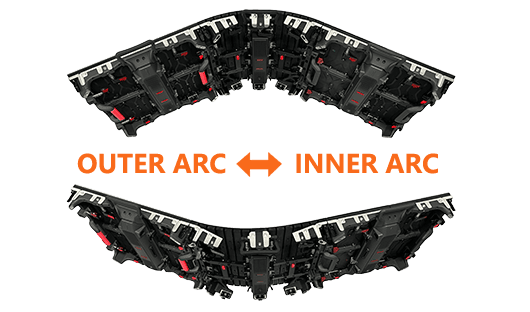

SH-C rental LED screen adopts a quick-lock design around it and is made of durable and beautiful materials. It supports inner and outer arc bending installation, which is convenient and fast, and improves the flatness of the picture.

High Refresh Rate 3840Hz to 7680Hz

The high refresh rate ensures the smoothness of each frame displayed on the screen and effectively prevents flickering in LED displays when captured by high-frequency cameras. Furthermore, it guarantees image stability without any flicker or blurring caused by rapid image transitions, thereby enhancing overall image quality.

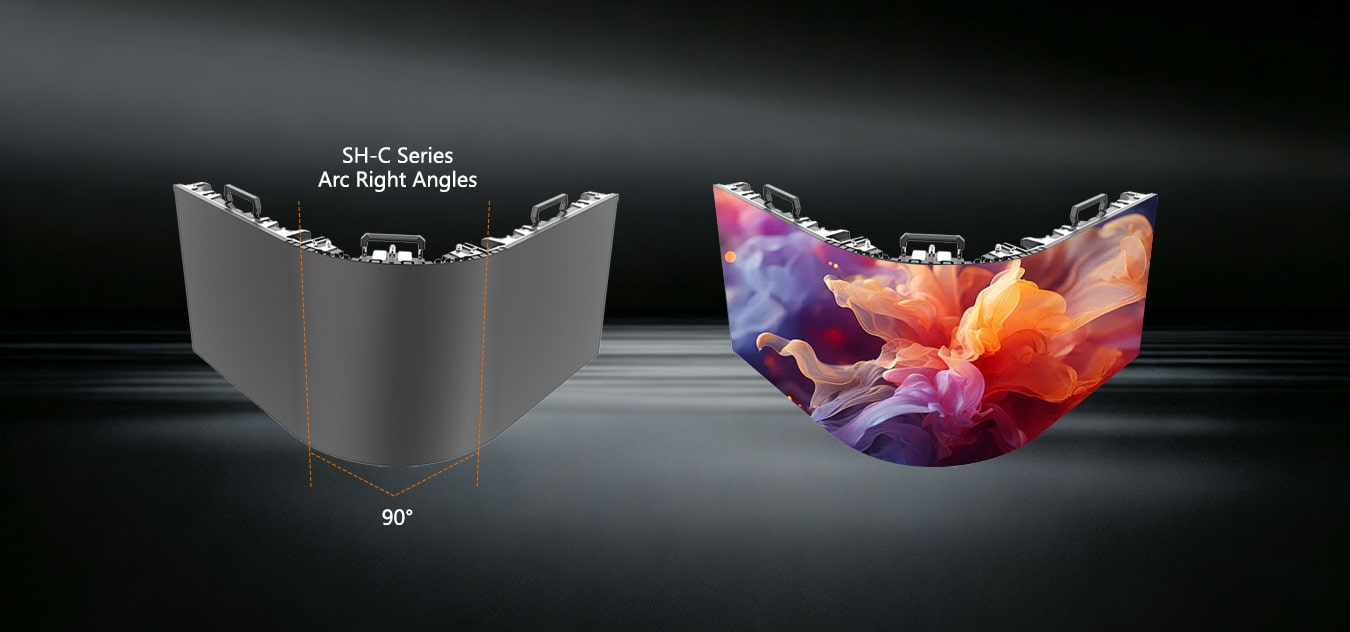

Perfect Arc Right Angles with Smaller Radius

By adjusting two columns of SH-C Outdoor cabinets to a -45° angle and connecting them, a 90° arc right angle can be created. Flat screens from other series can be spliced on both sides to reduce display purchase costs.

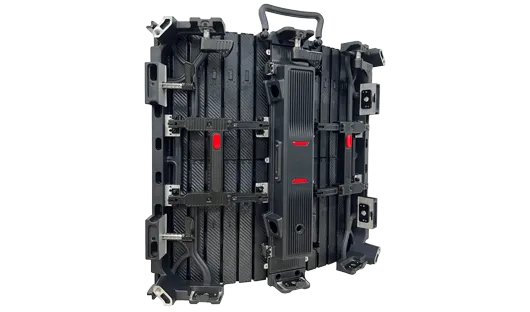

Engineered for Speed & Safety

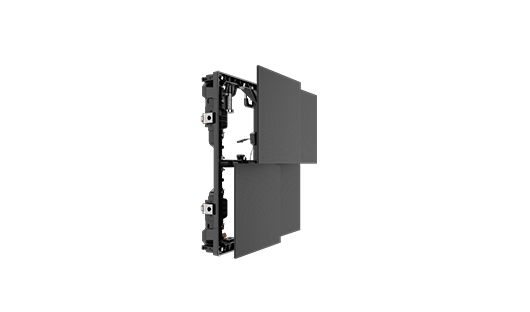

Modular Design for Easy Maintenance

Multiple Installation Methods

SH-C Series flexible rental LED display screen can be mounted via truss suspension or ground stacking, adapting to specific event requirement. This flexibility gives more creative possibilities, allowing you to deliver engaging visual experiences and expand business opportunities across a wide range of applications.

Flight Cases Available

SH-C Series offers optional flight case solutions with tour-ready protection – including a 5-in-1 case for 500×1000mm panels and a 10-in-1 case for 500×500mm panels, both engineered with road-proven durability to safeguard your equipment during transport.

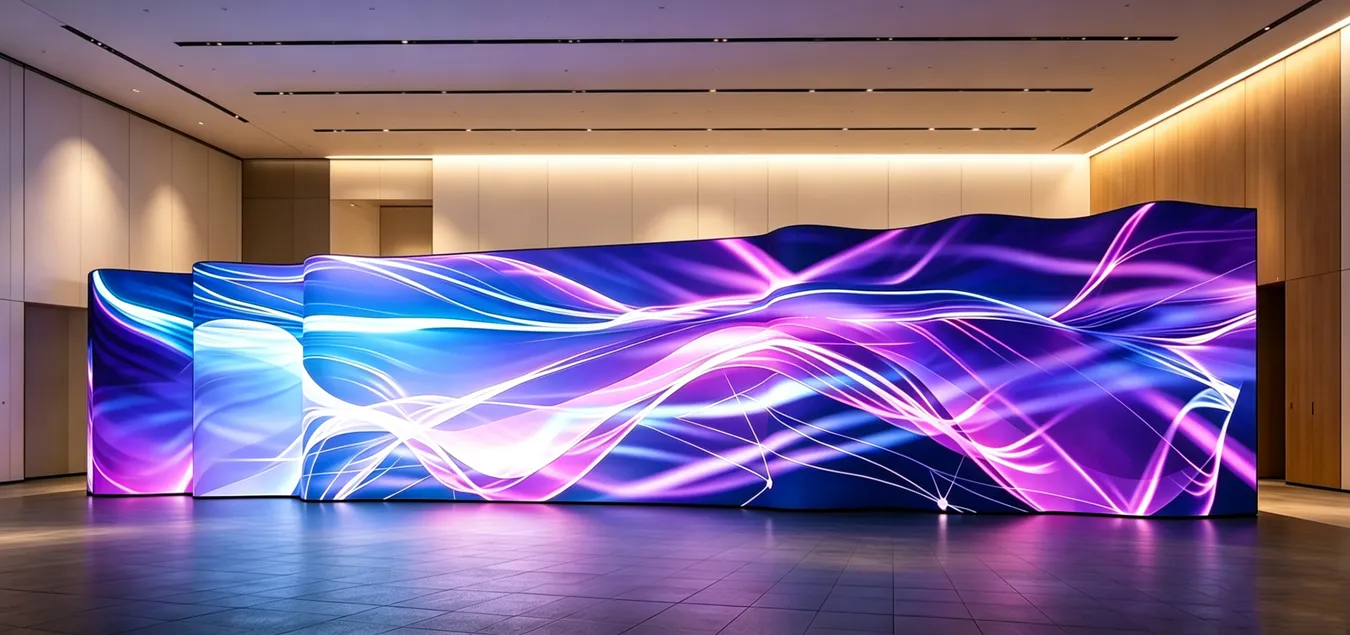

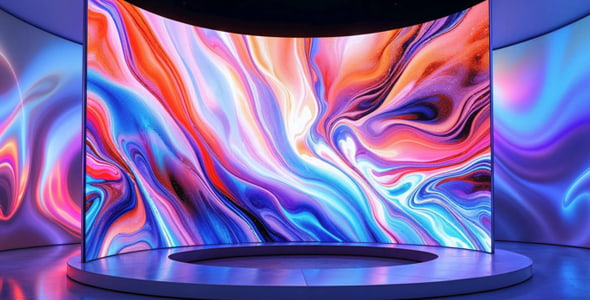

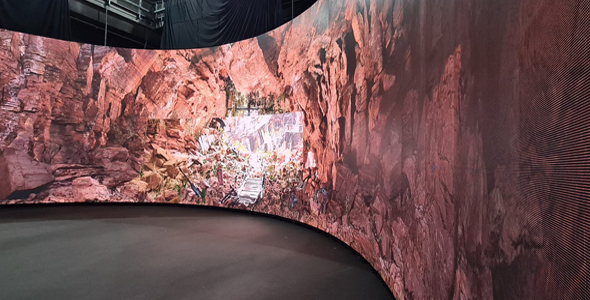

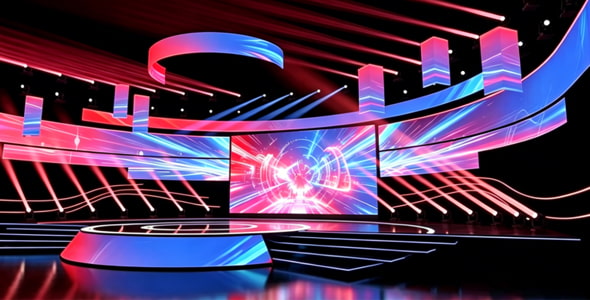

Application Scenarios

SH-C series rental LED display is widely used in various scenarios, including event sites, exhibitions, business meetings, etc. Its flexibility and ease of installation make it ideal for temporary events and long-term use.

Product Specifications

Description	Indoor				Outdoor
Product model	P1.9	P2.604	P2.97	P3.91	P2.604	P2.97	P3.91	P4.81
Pixel pitch	1.9MM	2.604MM	2.97MM	3.91MM	2.604MM	2.97MM	3.91MM	4.81MM
Pixel composition	SMD1415	SMD1415	SMD1415	SMD2020	SMD1415	SMD1415	SMD1921	SMD1921
Pixel density	262144DOT/m²	147456DOT/m²	112896DOT/m²	65536DOT/m²	147456DOT/m²	112896D0T/m²	65536DOT/m²	43264DOT/m²
Module size	250*250MM	250*250MM	250*250MM	250*250MM	250*250MM	250*250MM	250*250MM	250*250MM
Module resolution	128*128D0T	96*96DOT	84*84D0T	64*64D0T	96*96DOT	84*84D0T	64*64D0T	52*52D0T
Cabinetsize	50050067				50050067
Cabinet resolution 500*500	256*256D0T	192*192D0T	168*168DOT	128*128D0T	192*192D0T	168*168D0T	128*128D0T	104*104D0T
Cabinet weight 500*500	≤7KG				≤8.5KG
IP grade (front/back)	/	/	/	/	IP65	IP65	IP65	IP65
Brightness	>800 CD/m²	>800CD/m²	>800 CD/m²	>800CD/m²	>4500CD/m²	>4500CD/m²	>4500CD/m²	>4500CD/m²
Scanning method	1/32S	1/32S	1/28S	1/16S	1/24S	1/21S	1/16S	1/13S
Refresh rate	≥3840HZ	≥3840HZ	≥7680HZ	≥7680HZ	≥3840HZ	≥3840HZ	≥7680HZ	≥7680HZ
Viewing angle(H/V)	140%/140°	140%/140°	140%/140°	140%/140°	140%/140°	140%/140°	140%/140°	140%/140°
Viewing distance	>2M	>3M	>3M	>4M	>3M	>3M	>4M	>5M
Gray scale	14BIT				14BIT
Color Types	16.7M				16.7M
Brightness adjustment	≥600nits				≥4500nits
Max power consumption	450W/m²				650W/m²
Aver power consumption	200W/m²				350W/m²
Operating environment	Indoor				Outdoor
Input power	AC100~240 50/60HZ				AC100~240 50/60HZ
Working temperature	-20°C~+65°C				-20°C~+65°C
Working humidity	10~95% RH				10~95% RH
Lifespan	100,000HOURS				100,000HOURS

FAQ

What is a rental curved LED display used for?

Rental curved LED displays are mainly used for stages, live events, exhibitions, trade shows, and immersive spaces, where creative shapes and strong visual impact are required.

Can the curved LED screen be used as a flat screen?

Yes. The cabinets support both flat and curved installation, allowing flat and curved screens to be mixed in one setup for maximum flexibility.

What curved shapes can this LED display create?

The display supports concave, convex, S-shaped, wave-shaped, and cylindrical configurations, making it suitable for a wide range of creative designs.

Can the curved LED screen be hung or only ground-mounted?

The special hanging bar design supports safe and stable hanging installation, as well as ground stacking, depending on event requirements.

Is the curved LED display suitable for both indoor and outdoor use?

Yes. Indoor and outdoor versions are available, with different brightness levels and IP ratings to match various application environments.

What is the maximum bending angle for each cabinet?

Each cabinet in this RF series rental LED display supports both concave and convex bending.

Concave bending angle: Maximum 10°
Convex bending angle: Maximum 20°

Compared to flat rental LED cabinets with curved locks, the RF series offers greater curvature flexibility.

What is price per square meter of screen?

Prices vary depending on the configuration.

Feel free to send us an inquiry. Our professional sales engineers will provide you with the appropriate solution.
