Master Series Indoor and Outdoor LED Display Rentals

Master Series

Indoor & Outdoor Rental LED Display

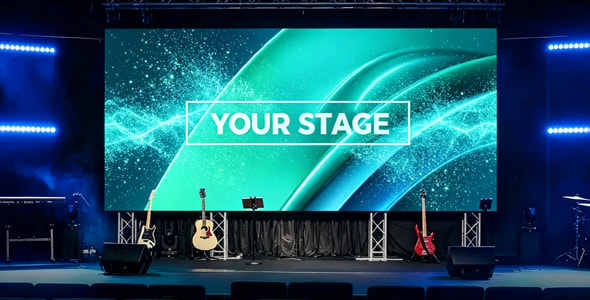

Application: Event, Concert, Stage, Church Backdrop, Wedding
  • 500*500/1000*1000mm LED Display Cabinet
  • Quick Lock Fast Installation
  • Detachable back cover
  • Front or Rear Dual Maintenance
  • Lightweight Die-cast Aluminum Cabinet
  • 7680Hz high refresh rate
  • Factory Customized Solution
Contact Us

Durable & Versatile: Perfect for Outdoor & Indoor Use

As a professional LED display manufacturer, our rental LED walls are fully adapted to frequent disassembly, repeated use, long-distance transportation and complex on-site environment, ideal for stage performances, concerts, exhibitions, conferences and outdoor large-scale events.

Pixel Pitch: 2.5/2.6/2.9/3.9mm       Panel Dimension: 500(W)x500(H)x76.3(D)mm, 1000(W)x1000(H)x76.3(D)mm

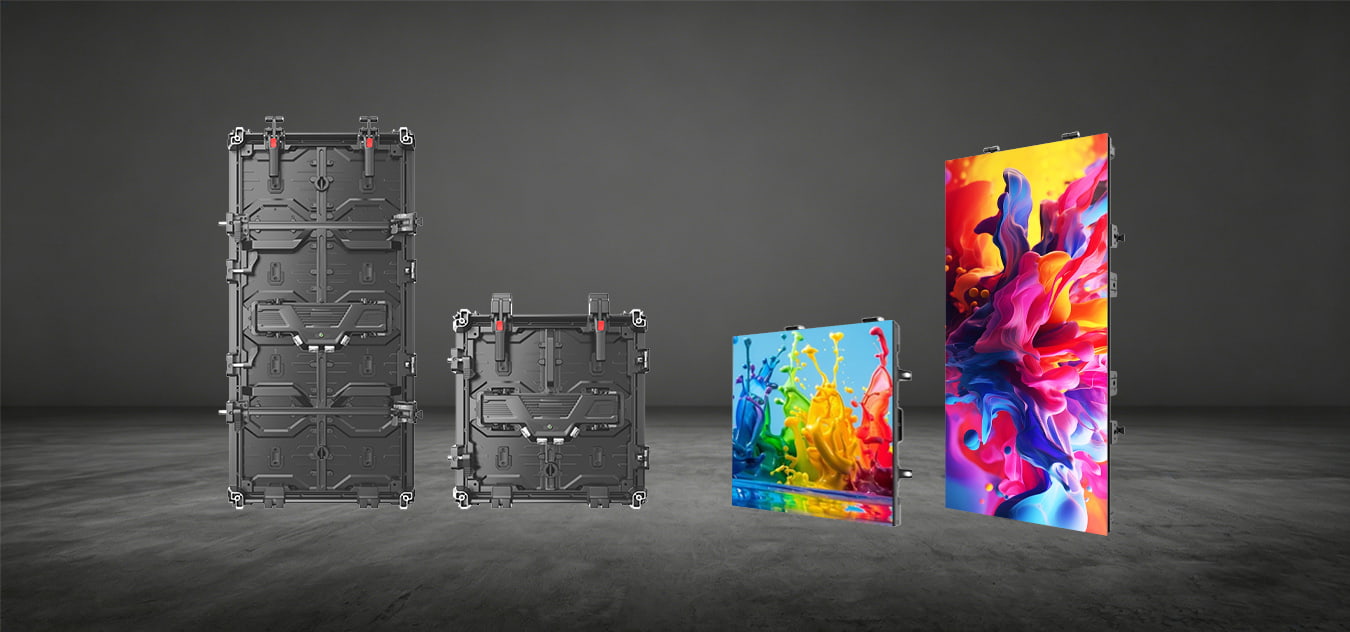

Master Series Indoor&Outdoor Rental LED Display

The Master Series rental LED display, measuring 500 x 500/1000 x 1000 mm, features a quick-lock mechanism and corner protection. The product supports front and rear maintenance, and the power supply unit is removable for ease of servicing. It enables unique installation effects to meet a wide range of display requirements.

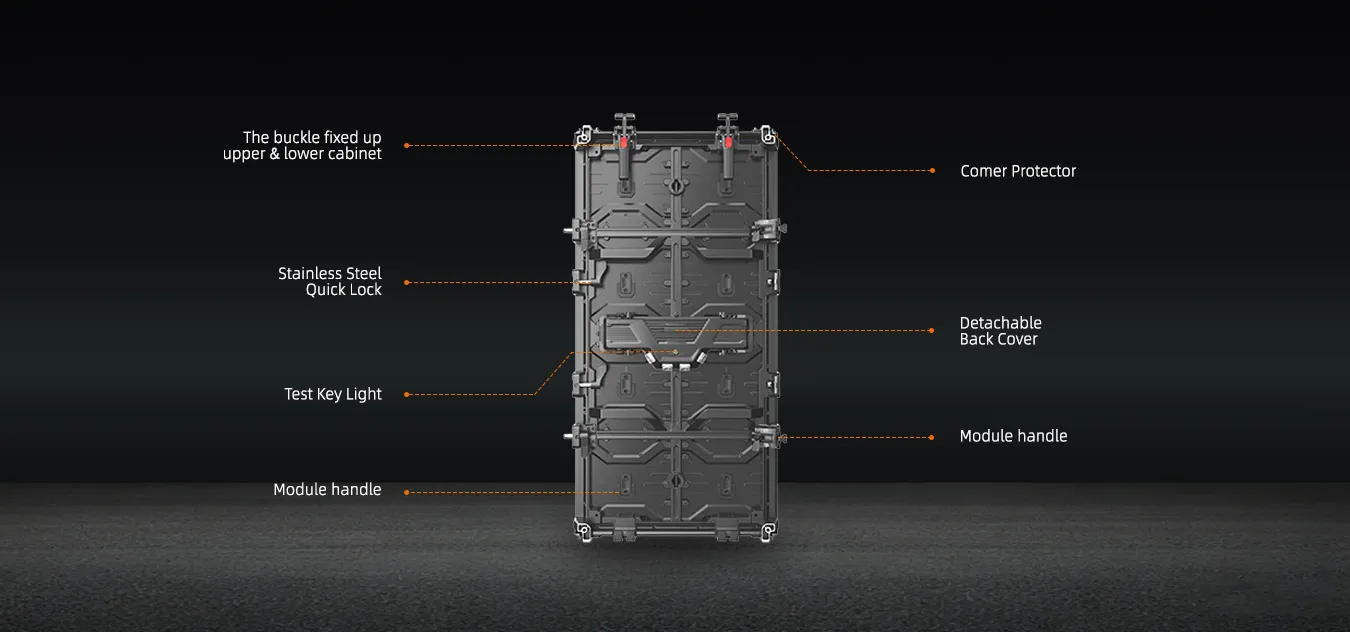

Perfect Cabinet Design

High-quality products, refined in every detail: cabinet handles, fixing slots, quick locks, corner protection design and removable power box, each part demonstrates excellent quality.

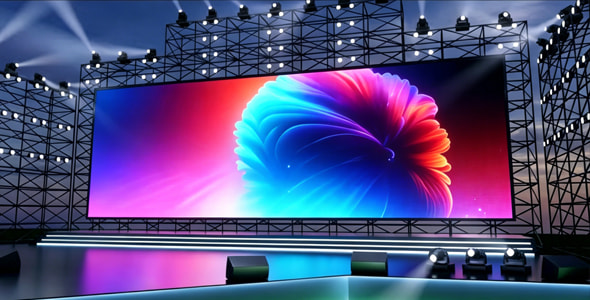

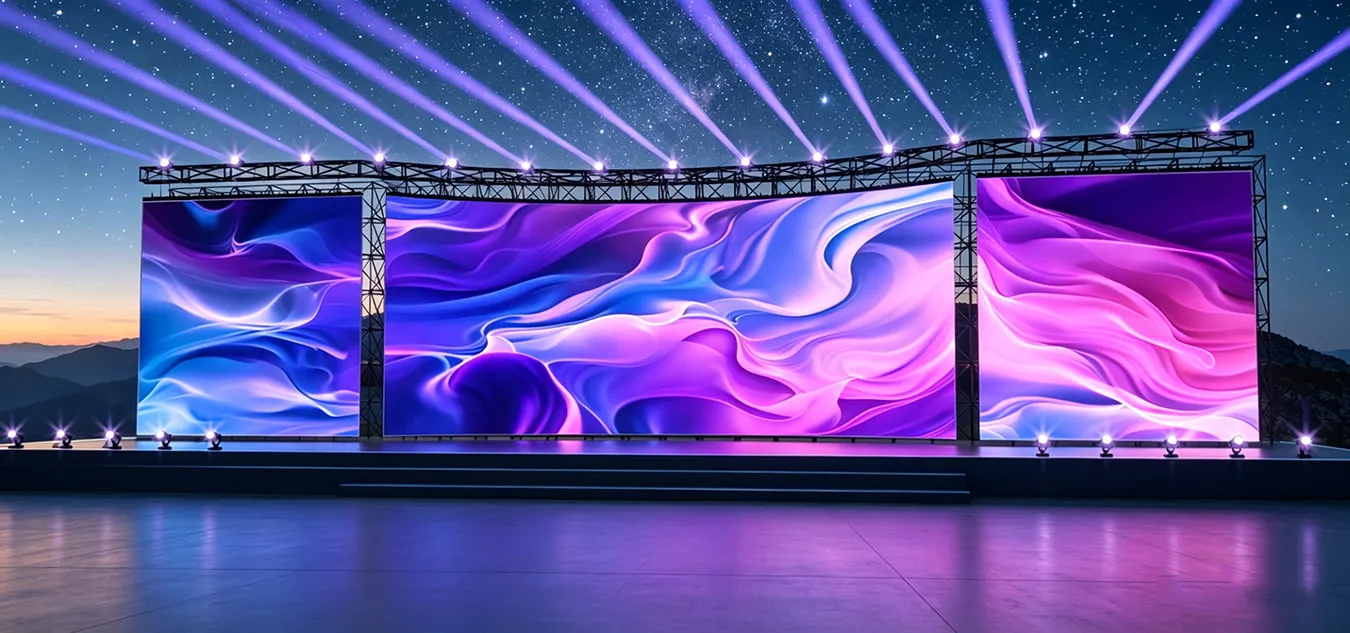

Outdoor - Bright Displays

Master Series redefines stage visuals with its professional-grade display technology: True black-face LEDs and matte-black anti-reflective masks work in unison to deliver deeper blacks, a high contrast ratio, and near-zero light reflection. With 5000nits ultra-high brightness, it maintains vivid visibility in outdoor venues.

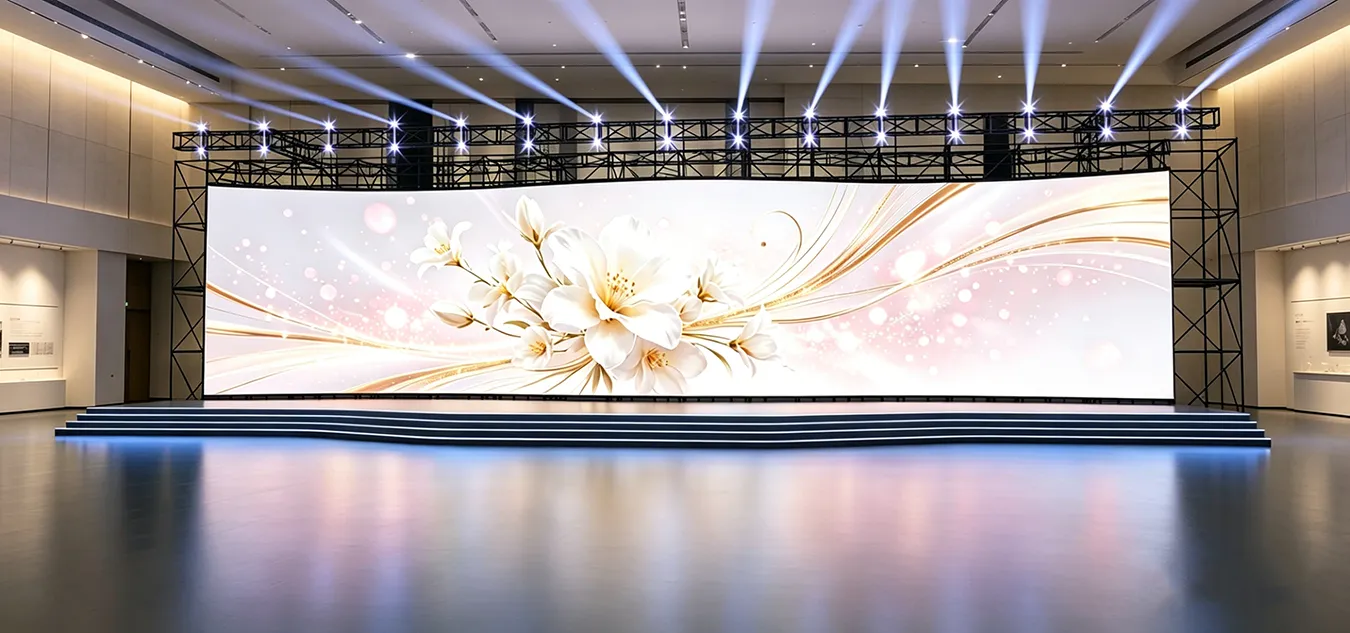

Indoor - Clear Image Performance

Master Series delivers clear image performance with a 0.1-5000nit high dynamic brightness range and <500K color deviation across all grayscales (0-255), preserving delicate image details while ensuring color accuracy even under low-light display conditions. With 16bit grayscale, 7680Hz high refresh rate, it reproduces pristine visuals from event fronts to camera feeds.

Engineered for Speed & Safety

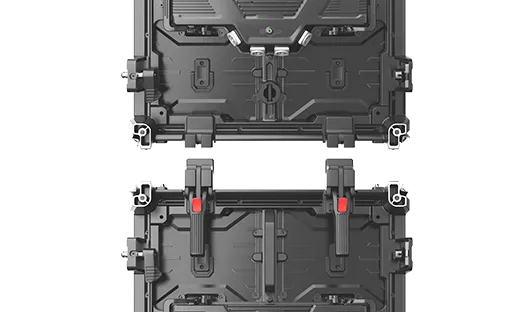

Solid & Faster Vertical Locking

Featuring high-strength king pins, auto-magnetic cabinet design, and color-coded verification, our vertical locking system delivers speed, strength, and certainty in every connection.

Ring Installation (Optional)

Master series LED screen is equipped with arc lock, which can be easily installed in a circular shape to create a unique shape

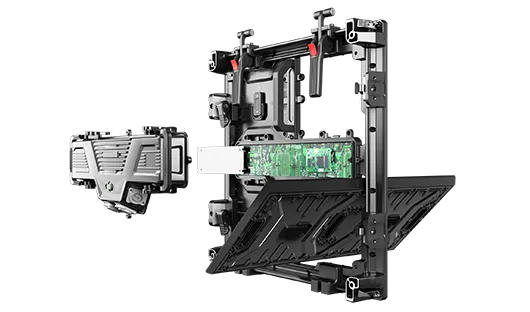

Modular Design for Easy Maintenance

Supports front and rear maintenance

Power box is hard connected and plugged Dual maintenance, simple operation, fast installation and maintenance

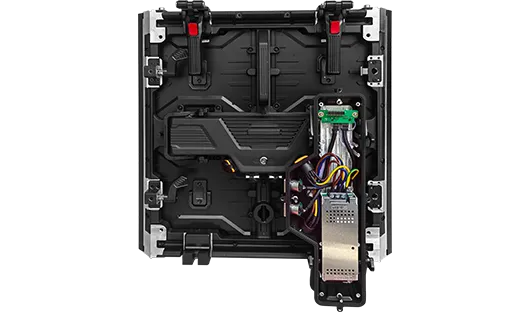

Removable Back Cover

Master series rental LED screen power box is a hub connected design that can be quickly disassembled and installed through buckles.

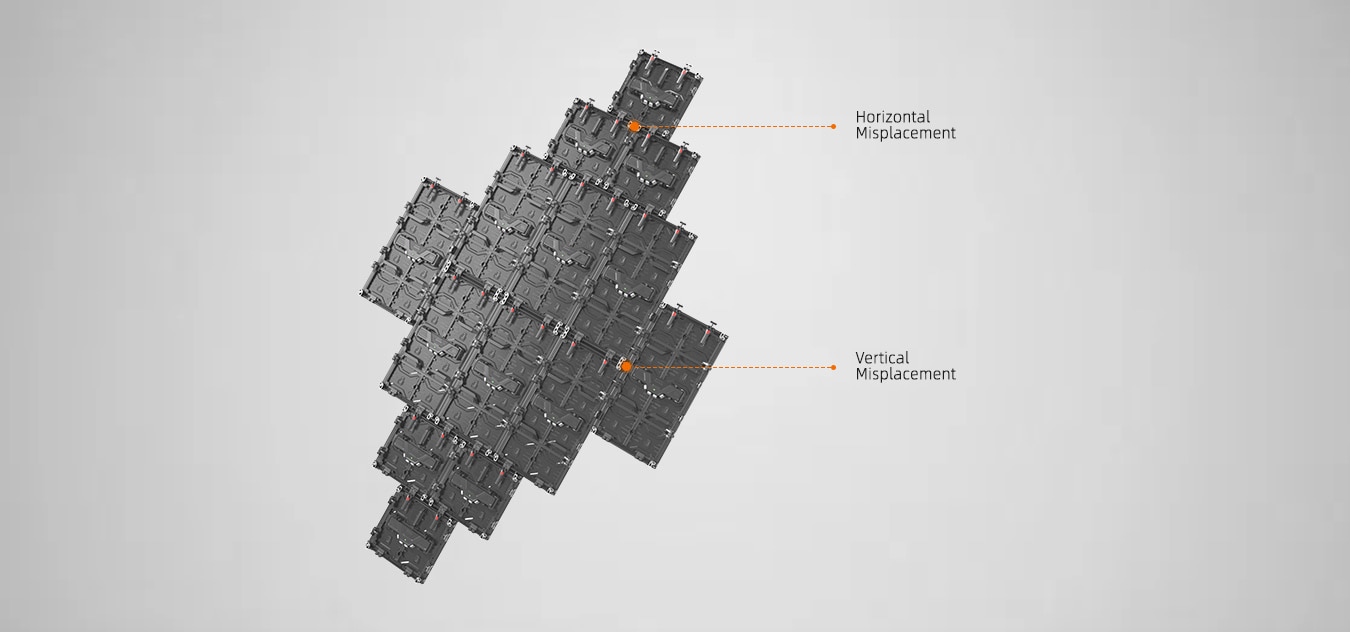

Irregular aassemble

The dimensions of 500*500mm and 500*1000mm.can be combined with each other.It can be cross connected,Various creative displays.

Modeling display

Customize any splicing cabinet inner arc outer arc or curved screen, can be spliced arbitrarily.

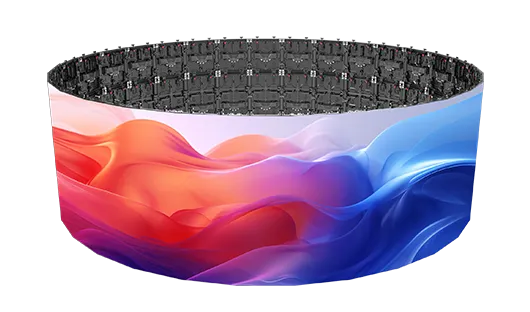

Circular screens assembly

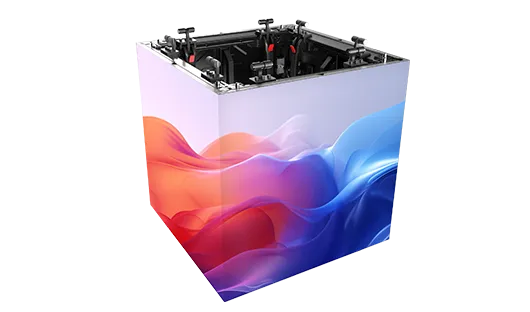

Magic screens

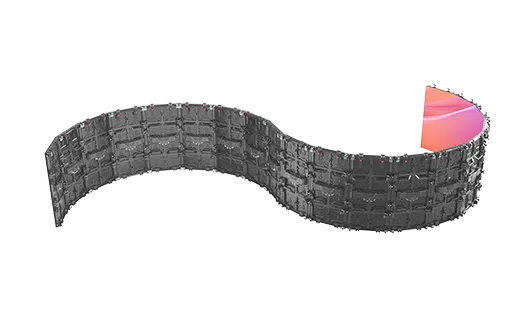

Assembly of inner and outer arcs

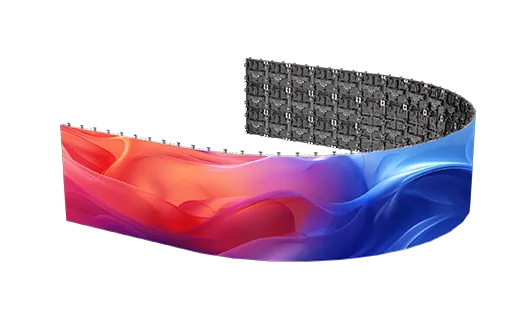

U-shaped assembly

Multiple Installation Methods

Supports hanging, stacking, and stage mounting.

Flight Cases Available

Master Series offers optional flight case solutions with tour-ready protection – including a 6-in-1 case for 500×1000mm panels and a 6-in-1 case for 500×500mm panels, both engineered with road-proven durability to safeguard your equipment during transport.

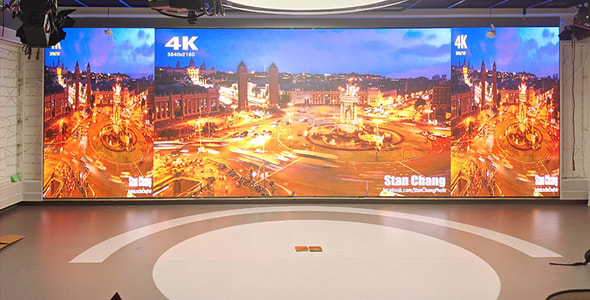

Application Scenarios

Master Series rental LED board is widely used in various scenes such as event sites and exhibitions. With its flexibility and convenient installation design, it is an ideal choice for temporary events and long-term use, meeting various display needs.

Product Specifications

Product TypeIndoorOutdoor
Product modelP1.5625P1.953P2.5P2.604P2.976P3.91P2.5P2.604P2.976P3.91
Pixel pitch mm1.56251.9532.52.6042.9763.912.52.6042.9763.91
Pixe composition1212151515151515151520201415141514151921
Module resolution160*320128*256100*20096*19284*16864*128100*20096*19284*16864*128
Scanning method///32S21S16S/24S21S16S
Refresh rate///384038407680/384038407680
Brightness///800800800/450045004500
Cabinet size500*500500*1000
IP gradeIP40/IP21IP65/IP54
Voltage Input 220V Output5V
Weight 500*500 cabinet 9.5KG 500*1000 cabinet 15KG
Pixel density262411/m²409600/m²160000/m²147456/m²112896/m²65536/m²160000/m²147456/m²112896/m²65536/m²
Viewing angle(H/V)140°/140°140°/140°140°/140°140°/140°140°/140°140°/140°140°/140°140°/140°140°/140°140°/140°
Gray scale14bit14bit
Color Types16.7M16.7M
Brightness adjustment0-100 levels adjustable0-100 levels adjustable
Max power consumption500W/m²650W/m²
Aver power consumption220W/m²280W/m²
Operating environmentIndoorOutdoor
Input powerAC100~240 50/60HZAC100~240 50/60HZ
Working temperature-20 °C~+50 °C-20 °C~+50 °C
Working humidity10~95% RH10~95% RH
Lifespan100,000hours100,000hours
